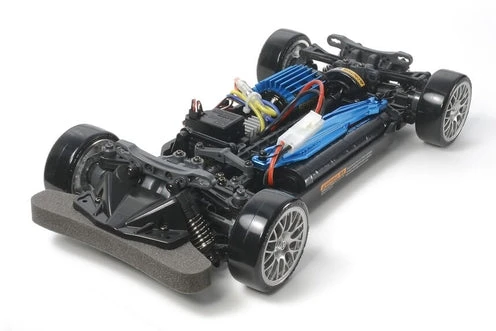

Tamiya TT-02D Drift Spec Chassis 58584

The TT-02 chassis is Tamiya’s latest entry level 4WD full independent suspension assembly kit that offers ease of assembly and easy maintenance. The TT-02D is the Drift Spec variant that includes special parts to make it a fun to drive drifting machine.

• Includes Super Driftech tires (24mm width) which feature a special resin compound suited to drift driving.
• Includes full ball bearings and CVA (oil-filled) Super Mini shocks.
• Tamiya Sport-Tuned Motor and Aluminum heat sink is included.
• Brake disc-shaped wheel hubs (silver color) and battery holder (blue) are metal-plated parts.
• The TT-02 chassis offers 2 different wheelbases and tread settings without the addition of Option Parts. It also supports 10 different gear ratios.
• The skid-shaped underside of the bathtub type frame minimizes contact with the road surface.
• Body is not included in this kit. Purchase a separately-sold body of your choosing and fit it to the chassis.

Specifications

• Length: 376mm, Width: 182mm/190mm
• Wheelbase: 257/251mm
• Tire Width/Diameter (Front & Rear): 24/64mm
• Bathtub-type Frame
• Shaft Driven 4WD
• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front/Rear CVA Oil Shocks
• Gear Ratio = 8.27:1 (10 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion) Type 540 Sport-Tuned Motor
• Full Ball Bearings
• Electronic Speed Controller (ESC) is sold separately.

Requires: Radio Control System with 1 Servo, Electronic Speed Controller (ESC), 7.2v Battery & Charger, Bodyshell and suitable Paint for the Bodyshell, Tools for Assembly.
